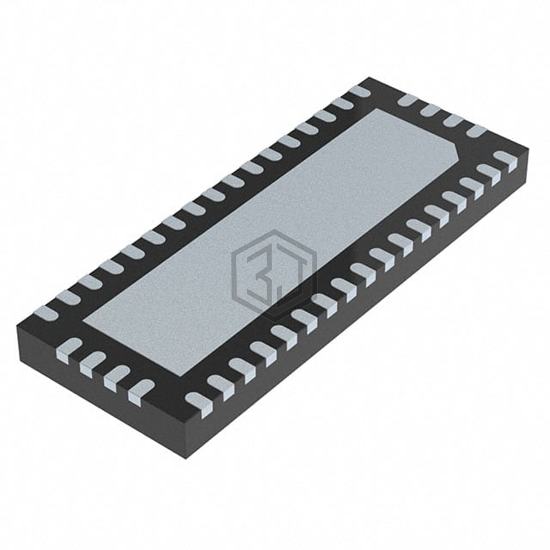

IC MUX/DEMUX QUAD 2X1 42TQFN
PI2LVD412ZHEX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Diodes Incorporated. IC MUX/DEMUX QUAD 2X1 42TQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 42-VFQFN Exposed Pad, number of circuits 4.
In Stock: 6,884
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 900mOhm (Typ) |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 1.5V ~ 2V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 8ns, 4ns |
| -3db Bandwidth | 1.8GHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | - |
| Current - Leakage (IS(off)) (Max) | - |
| Crosstalk | -68dB @ 10MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 42-VFQFN Exposed Pad |
| Supplier Device Package | 42-TQFN (9x3.5) |
PI2LVD412ZHEX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TS3A5018DGVR | Texas Instruments | IC SWITCH QUAD SPDT 16TVSOP | 53% | View |
| TS3A5018RSVR | Texas Instruments | IC SWITCH QUAD SPDT 16UQFN | 53% | View |
| TS3A5018DR | Texas Instruments | IC SWITCH QUAD SPDT 16SOIC | 53% | View |
| TS3A5018RGYR | Texas Instruments | IC SWITCH QUAD SPDT 16VQFN | 53% | View |
| TS3A5018DBQR | Texas Instruments | IC SWITCH QUAD SPDT 16SSOP | 53% | View |
| TS3A5018PWR | Texas Instruments | IC SWITCH QUAD SPDT 16TSSOP | 53% | View |
Submit your RFQ for PI2LVD412ZHEX and get a quote within 24 hours.
