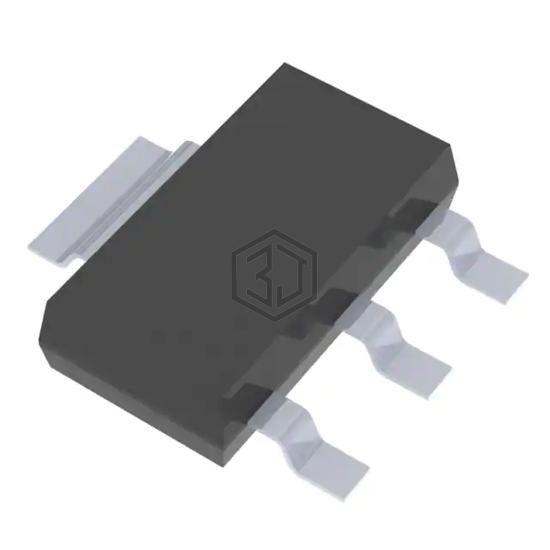

IC REG LINEAR 1.2V 1.5A SOT223
PAM3115ABA120 is a PMIC - Voltage Regulators - Linear manufactured by Diodes Incorporated. IC REG LINEAR 1.2V 1.5A SOT223. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case TO-261-4, TO-261AA, current - supply (max) 600 µA.
In Stock: 3,069
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 3.6V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.35V @ 1.5A |
| Current - Output | 1.5A |
| Current - Quiescent (Iq) | 150 µA |
| Current - Supply (Max) | 600 µA |
| PSRR | 55dB ~ 35dB (100Hz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223-3 |
PAM3115ABA120 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LP5912-1.2DRVT | Texas Instruments | IC REG LINEAR 1.2V 500MA 6WSON | 57% | View |
| LP5912Q1.2DRVRQ1 | Texas Instruments | IC REG LINEAR 1.2V 500MA 6WSON | 57% | View |
| LP5912Q1.1DRVTQ1 | Texas Instruments | IC REG LINEAR 1.1V 500MA 6WSON | 55% | View |
| LP5912-1.1DRVT | Texas Instruments | IC REG LINEAR 1.1V 500MA 6WSON | 55% | View |
| LP5912Q1.1DRVRQ1 | Texas Instruments | IC REG LINEAR 1.1V 500MA 6WSON | 55% | View |
| TPS71247DRCR | Texas Instruments | IC REG LIN 1.8/2.85V 10VSON | 53% | View |
Submit your RFQ for PAM3115ABA120 and get a quote within 24 hours.
