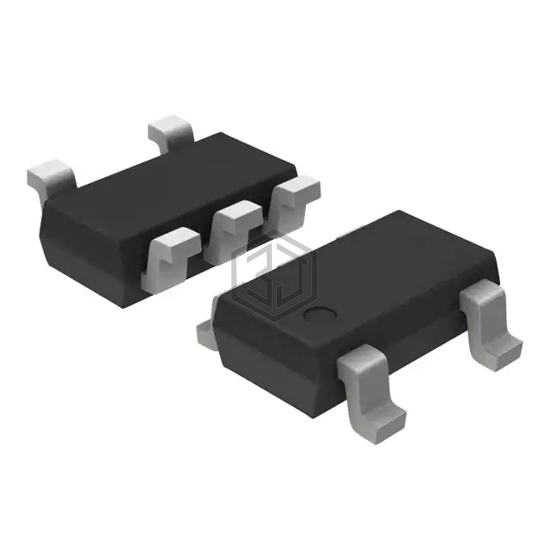

IC REG BUCK 1.2V 1A TSOT25
PAM2305AAB120 is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Diodes Incorporated. IC REG BUCK 1.2V 1A TSOT25. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SOT-23-5 Thin, TSOT-23-5, current - output 1A.
In Stock: 5,048
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | - |
| Current - Output | 1A |
| Frequency - Switching | 1.5MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-25 |
PAM2305AAB120 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AP3417CDN-1.2TRG1 | Diodes Incorporated | IC REG BUCK 1.2V 1A 6DFN2020 | 100% | View |
| LTC3406BES5-1.5#TRPBF | Analog Devices Inc. | IC REG BUCK 1.5V 600MA TSOT23-5 | 88% | View |
| LTC3406ES5-1.8#TRPBF | Analog Devices Inc. | IC REG BUCK 1.8V 600MA TSOT23-5 | 83% | View |
| RT8008-18GB | Richtek USA Inc. | IC REG BUCK 1.8V 600MA SOT23-5 | 83% | View |
| LTC3405AES6-1.5#TRPBF | Analog Devices Inc. | IC REG BUCK 1.5V 300MA TSOT23-6 | 81% | View |
| RT8008-25GB | Richtek USA Inc. | IC REG BUCK 2.5V 600MA SOT23-5 | 75% | View |
Submit your RFQ for PAM2305AAB120 and get a quote within 24 hours.
