GENERAL PURPOSE TRANSISTOR SOT36

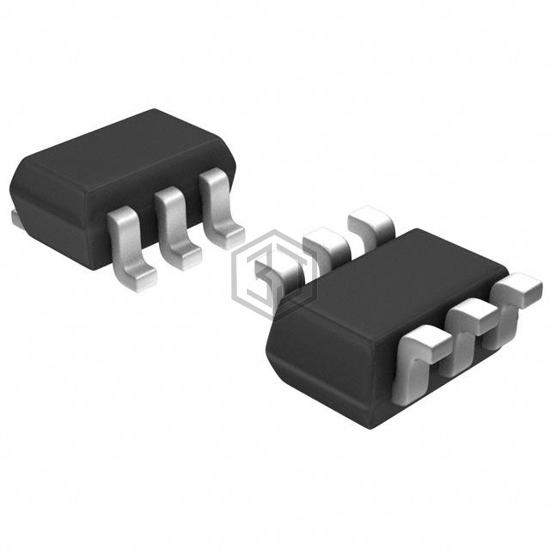

MMDT3946-7R-F is a Transistors - Bipolar (BJT) - Arrays manufactured by Diodes Incorporated. GENERAL PURPOSE TRANSISTOR SOT36. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-TSSOP, SC-88, SOT-363, current - collector (ic) (max) 200mA.
In Stock: 2,665
| Attribute | Value |
|---|---|
| Product Status | Active |
| Transistor Type | NPN, PNP Complementary |
| Current - Collector (Ic) (Max) | 200mA |
| Voltage - Collector Emitter Breakdown (Max) | 40V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 5mA, 50mA, 400mV @ 5mA, 50mA |
| Current - Collector Cutoff (Max) | 50nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 10mA, 1V |
| Power - Max | 200mW |
| Frequency - Transition | 300MHz, 250MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SOT-363 |
Submit your RFQ for MMDT3946-7R-F and get a quote within 24 hours.
