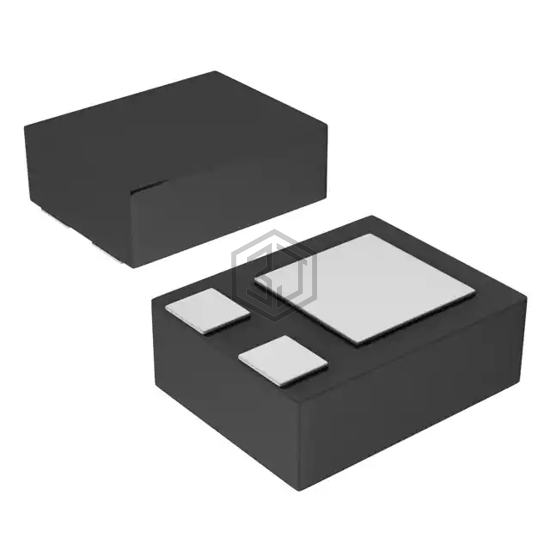

MOSFET P-CH 20V 200MA 3DFN
DMP210DUFB4-7 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET P-CH 20V 200MA 3DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-XFDFN.
In Stock: 81,969
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 200mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.2V, 4.5V |
| Rds On (Max) @ Id, Vgs | 5Ohm @ 100mA, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | ±10V |
| Input Capacitance (Ciss) (Max) @ Vds | 175 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 350mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | X2-DFN1006-3 |
| Package / Case | 3-XFDFN |
Submit your RFQ for DMP210DUFB4-7 and get a quote within 24 hours.
