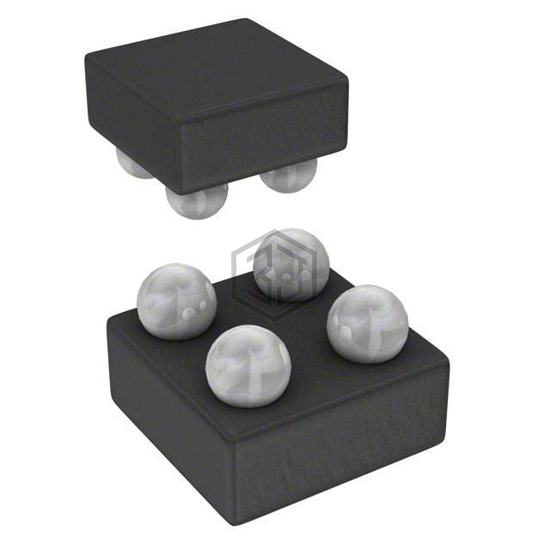

MOSFET P-CH 20V 4.1A U-WLB1010-4
DMP2047UCB4-7 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET P-CH 20V 4.1A U-WLB1010-4. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-UFBGA, WLBGA.
In Stock: 64,410
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 4.1A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 47mOhm @ 1A, 4.5V |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 2.3 nC @ 4.5 V |
| Vgs (Max) | -6V |
| Input Capacitance (Ciss) (Max) @ Vds | 218 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 1W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | U-WLB1010-4 |
| Package / Case | 4-UFBGA, WLBGA |
Submit your RFQ for DMP2047UCB4-7 and get a quote within 24 hours.
