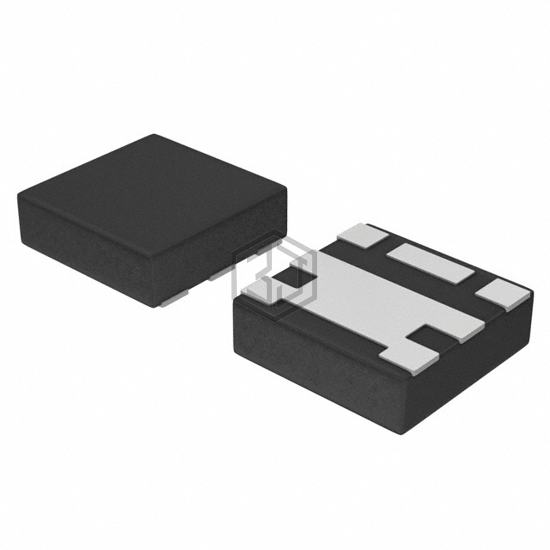

MOSFET P-CH 12V 6.6A X1-DFN1616
DMP1245UFCL-7 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET P-CH 12V 6.6A X1-DFN1616. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerUFDFN.
In Stock: 13,960
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 12 V |
| Current - Continuous Drain (Id) @ 25°C | 6.6A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 29mOhm @ 4A, 4.5V |
| Vgs(th) (Max) @ Id | 950mV @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 26.1 nC @ 8 V |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 1357.4 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 613mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | X1-DFN1616-6 (Type E) |
| Package / Case | 6-PowerUFDFN |
Submit your RFQ for DMP1245UFCL-7 and get a quote within 24 hours.
