MOSFET N-CH 60V 310MA 3DFN

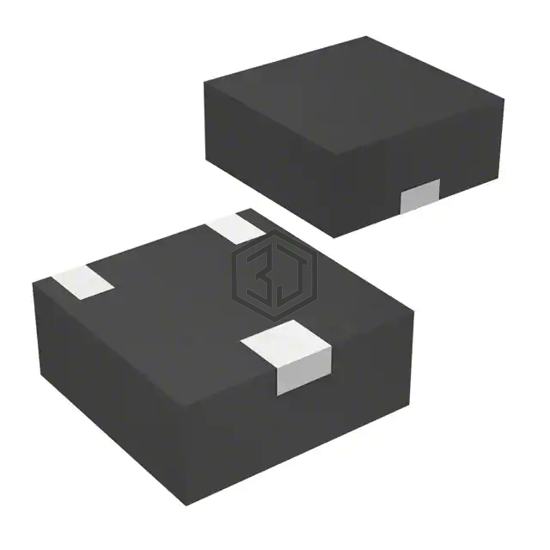

DMN62D0LFD-7 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET N-CH 60V 310MA 3DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-UDFN.
In Stock: 175
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 310mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4V |
| Rds On (Max) @ Id, Vgs | 2Ohm @ 100mA, 4V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.5 nC @ 4.5 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 31 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 480mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | X1-DFN1212-3 |
| Package / Case | 3-UDFN |
Submit your RFQ for DMN62D0LFD-7 and get a quote within 24 hours.
