MOSFET N-CH 30V 60A POWERDI3333

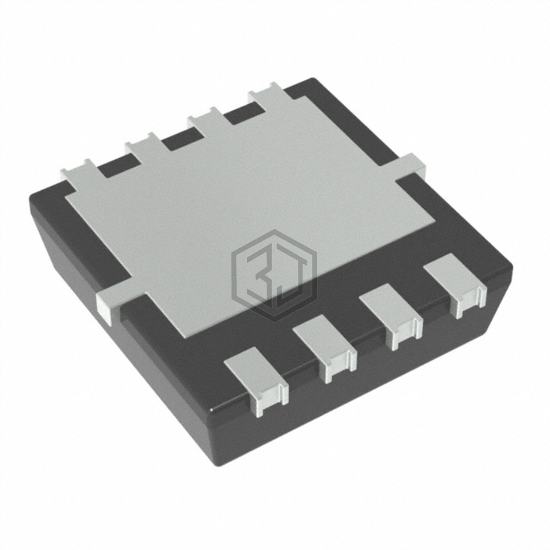

DMN3009LFVW-13 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET N-CH 30V 60A POWERDI3333. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.
In Stock: 7,416
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 60A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 5mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 42 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2000 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 1W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank |
| Supplier Device Package | PowerDI3333-8 (SWP) Type UX |
| Package / Case | 8-PowerVDFN |
Submit your RFQ for DMN3009LFVW-13 and get a quote within 24 hours.
