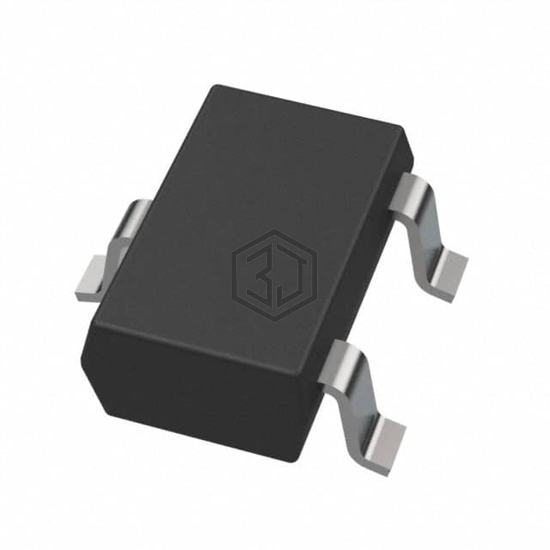

DMN2053UW-7
MOSFET N-CH 20V 2.9A SOT323
DMN2053UW-7 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET N-CH 20V 2.9A SOT323. Key specifications: operating temperature -55°C ~ 150°C (TJ).
In Stock: 86,739
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 2.9A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 56mOhm @ 2A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 3.6 nC @ 4.25 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 369 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 470mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | - |
| Supplier Device Package | - |
| Package / Case | - |
Frequently Asked Questions
DMN2053UW-7 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET N-CH 20V 2.9A SOT323
The operating temperature range of DMN2053UW-7 is -55°C ~ 150°C (TJ).
