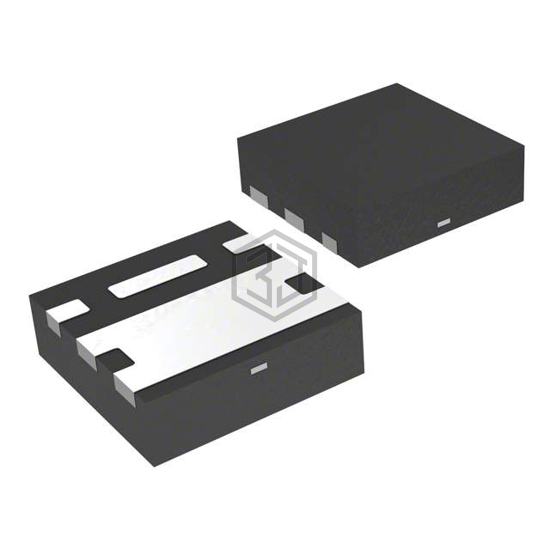

MOSFET N CH 12V 11A U-DFN2020-6E
DMN1019UFDE-7 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET N CH 12V 11A U-DFN2020-6E. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerUDFN.
In Stock: 75
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 12 V |
| Current - Continuous Drain (Id) @ 25°C | 11A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.2V, 4.5V |
| Rds On (Max) @ Id, Vgs | 10mOhm @ 9.7A, 4.5V |
| Vgs(th) (Max) @ Id | 800mV @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 50.6 nC @ 8 V |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 2425 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 690mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | U-DFN2020-6 (Type E) |
| Package / Case | 6-PowerUDFN |
Submit your RFQ for DMN1019UFDE-7 and get a quote within 24 hours.
