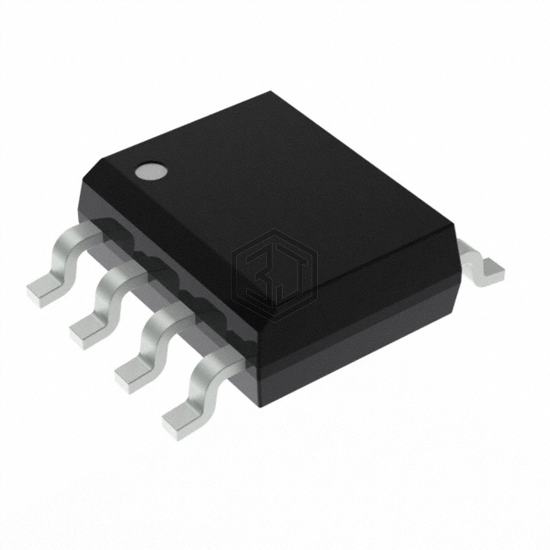

IC GATE DRVR HALF-BRIDGE 8SO
DGD2184MS8-13 is a PMIC - Gate Drivers manufactured by Diodes Incorporated. IC GATE DRVR HALF-BRIDGE 8SO. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), voltage - supply 10V ~ 20V, package / case 8-SOIC (0.154", 3.90mm Width).
In Stock: 7,365
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Synchronous |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.5V |
| Current - Peak Output (Source, Sink) | 1.4A, 1.8A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 40ns, 20ns |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO Type TH |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DGD21844MS14-13 | Diodes Incorporated | IC GATE DRVR HALF-BRIDGE 14SO | 100% | View |
| DGD21844S14-13 | Diodes Incorporated | IC GATE DRVR HALF-BRIDGE 14SO | 100% | View |
| IX21844NTR | IXYS Integrated Circuits Division | IC GATE DRVR HALF-BRIDGE 14SOIC | 94% | View |
| IX21844N | IXYS Integrated Circuits Division | IC GATE DRVR HALF-BRIDGE 14SOIC | 94% | View |
| ISL6612CRZ | Intersil | HALF BRIDGE BASED MOSFET DRIVER, | 72% | View |
| ISL6613ACBZ | Intersil | HALF BRIDGE BASED MOSFET DRIVER | 72% | View |
Submit your RFQ for DGD2184MS8-13 and get a quote within 24 hours.
