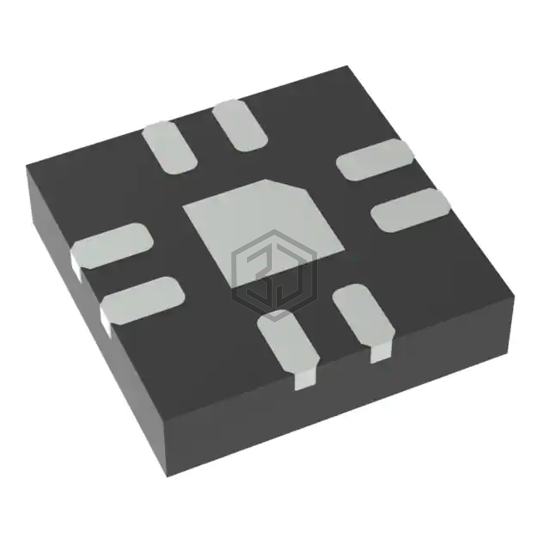

IC GATE DRV HALF-BRIDG QFN3030-8
DGD0590AFU-7 is a PMIC - Gate Drivers manufactured by Diodes Incorporated. IC GATE DRV HALF-BRIDG QFN3030-8. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), voltage - supply 4.5V ~ 5.5V, package / case 8-VQFN Exposed Pad.
In Stock: 992
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 5.5V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 1A, 3A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 50 V |
| Rise / Fall Time (Typ) | 27ns, 29ns |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-VQFN Exposed Pad |
| Supplier Device Package | V-QFN3030-8 (Type TH) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM5109BQNGTTQ1 | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8WSON | 76% | View |
| LM5109BSDX/NOPB | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8WSON | 76% | View |
| MIC4606-1YML-TR | Microchip Technology | IC GATE DRVR HALF-BRIDGE 16QFN | 76% | View |
| LM5109ASD | National Semiconductor | HALF BRIDGE BASED MOSFET DRIVER, | 76% | View |
| LM25101CMA/NOPB | National Semiconductor | LM25101 3A, 2A AND 1A HIGH VOLTA | 63% | View |
| LM5100CMYE/NOPB | National Semiconductor | HALF BRIDGE BASED MOSFET DRIVER, | 61% | View |
Submit your RFQ for DGD0590AFU-7 and get a quote within 24 hours.
