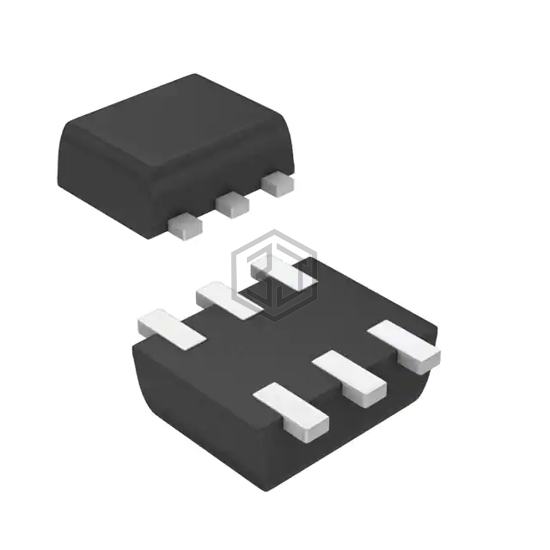

TRANS PREBIAS NPN/PNP SOT563
DCX123JH-7 is a Transistors - Bipolar (BJT) - Arrays, Pre-Biased manufactured by Diodes Incorporated. TRANS PREBIAS NPN/PNP SOT563. Key specifications: mounting type Surface Mount, package / case SOT-563, SOT-666, current - collector (ic) (max) 100mA, power - max 150mW.
In Stock: 2,457
| Attribute | Value |
|---|---|
| Product Status | Active |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Current - Collector (Ic) (Max) | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Resistor - Base (R1) | 2.2kOhms |
| Resistor - Emitter Base (R2) | 47kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 10mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 250µA, 5mA |
| Current - Collector Cutoff (Max) | 500nA |
| Frequency - Transition | 250MHz |
| Power - Max | 150mW |
| Mounting Type | Surface Mount |
| Package / Case | SOT-563, SOT-666 |
| Supplier Device Package | SOT-563 |
Submit your RFQ for DCX123JH-7 and get a quote within 24 hours.
