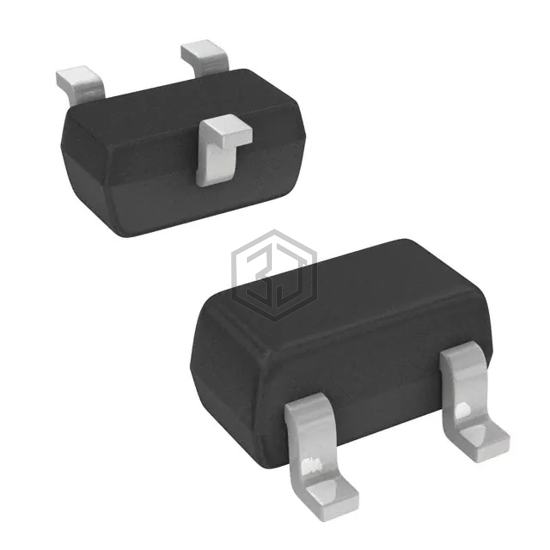

BAW56T-7-F
DIODE ARRAY GP 85V 75MA SOT523
BAW56T-7-F is a Diodes - Rectifiers - Arrays manufactured by Diodes Incorporated. DIODE ARRAY GP 85V 75MA SOT523. Key specifications: mounting type Surface Mount, package / case SOT-523.
In Stock: 4,384
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Configuration | 1 Pair Common Anode |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 85 V |
| Current - Average Rectified (Io) (per Diode) | 75mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 50 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns |
| Current - Reverse Leakage @ Vr | 2 µA @ 75 V |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-523 |
| Supplier Device Package | SOT-523 |
Frequently Asked Questions
BAW56T-7-F is a Diodes - Rectifiers - Arrays manufactured by Diodes Incorporated. DIODE ARRAY GP 85V 75MA SOT523
The mounting type of BAW56T-7-F is Surface Mount.
The package type of BAW56T-7-F is SOT-523.
