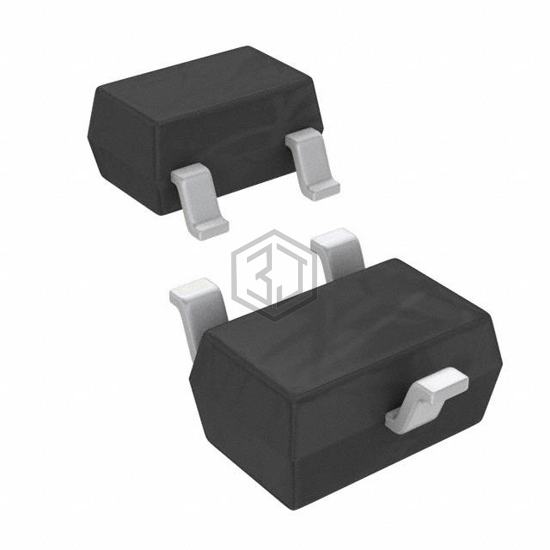

BAT54W-7
DIODE SCHOTTKY 30V 200MA SOT323
BAT54W-7 is a Diodes - Rectifiers - Single manufactured by Diodes Incorporated. DIODE SCHOTTKY 30V 200MA SOT323. Key specifications: mounting type Surface Mount, package / case SC-70, SOT-323.
In Stock: 2,784
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) | 200mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 5 ns |
| Current - Reverse Leakage @ Vr | 2 µA @ 25 V |
| Capacitance @ Vr, F | 10pF @ 1V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | SOT-323 |
| Operating Temperature - Junction | -65°C ~ 125°C |
Frequently Asked Questions
BAT54W-7 is a Diodes - Rectifiers - Single manufactured by Diodes Incorporated. DIODE SCHOTTKY 30V 200MA SOT323
The mounting type of BAT54W-7 is Surface Mount.
The package type of BAT54W-7 is SC-70, SOT-323.
Yes, BAT54W-7 is listed as Discontinued at Digi-Key. Consider requesting a quote for alternative parts.
