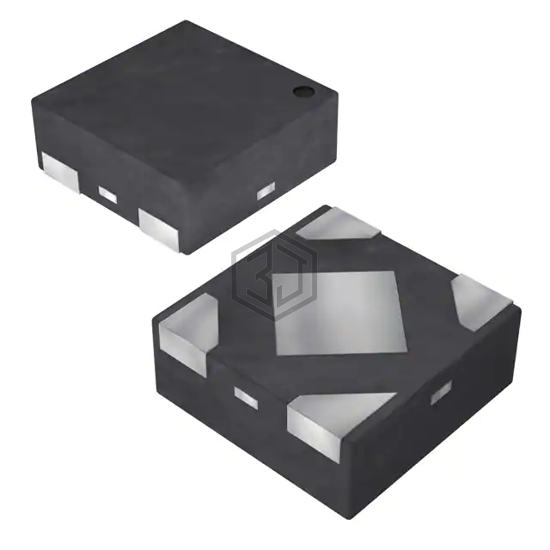

IC REG LINEAR 2.85V 150MA 4DFN
AP7315-285FS4-7B is a PMIC - Voltage Regulators - Linear manufactured by Diodes Incorporated. IC REG LINEAR 2.85V 150MA 4DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 4-XDFN Exposed Pad, current - supply (max) 100 µA.
In Stock: 3,097
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.25V |
| Voltage - Output (Min/Fixed) | 2.85V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.29V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 60 µA |
| Current - Supply (Max) | 100 µA |
| PSRR | 75dB (1kHz) |
| Control Features | - |
| Protection Features | Over Current |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-XDFN Exposed Pad |
| Supplier Device Package | X2-DFN1010-4 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AP7315-285W5-7 | Diodes Incorporated | IC REG LINEAR 2.85V 150MA SOT25 | 100% | View |
| AP7315DQ-30W5-7 | Diodes Incorporated | IC REG LINEAR 3V 150MA SOT25 | 99% | View |
| AP7315-31SA-7 | Diodes Incorporated | IC REG LINEAR 3.1V 150MA SOT23 | 98% | View |
| TPS71728DCKR | Texas Instruments | IC REG LINEAR 2.8V 150MA SC70-5 | 91% | View |
| LDK120C33R | STMicroelectronics | IC REG LIN 3.3V 200MA SOT323-5 | 90% | View |
| ISL9016IRUKFZ-T | Renesas Electronics America Inc | IC REG LINEAR 2.85V/2.5V 6UTDFN | 87% | View |
