IC OFFLINE SWITCH FLYBACK 7SO

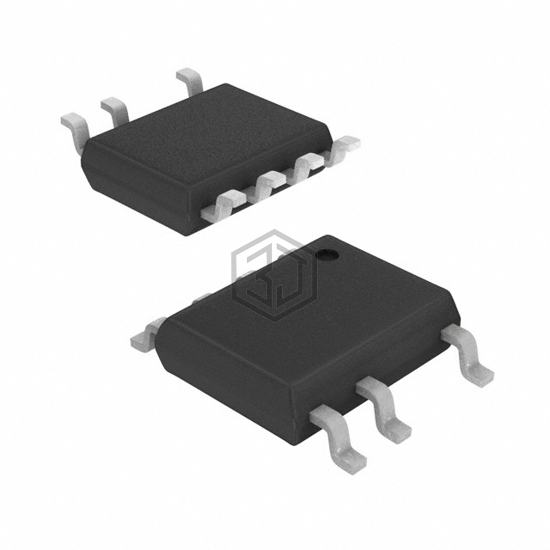

AP3984MTR-G1 is a PMIC - AC DC Converters, Offline Switchers manufactured by Diodes Incorporated. IC OFFLINE SWITCH FLYBACK 7SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), voltage - supply (vcc/vdd) 4.6V ~ 25V, package / case 8-SOIC (0.154", 3.90mm Width), 7 Leads.
In Stock: 2,386
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | 13 V |
| Voltage - Supply (Vcc/Vdd) | 4.6V ~ 25V |
| Duty Cycle | - |
| Frequency - Switching | 60kHz |
| Power (Watts) | - |
| Fault Protection | Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | 7-SO |
| Mounting Type | Surface Mount |
AP3984MTR-G1 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VIPER115LSTR | STMicroelectronics | IC OFFLINE SW MULT TOP 10SSOP | 96% | View |
| VIPER0PLD | STMicroelectronics | IC OFFLINE SWITCH MULT TOP 16SO | 93% | View |
| VIPER317LDTR | STMicroelectronics | IC OFFLINE SWITCH MULT TOP 16SO | 93% | View |
| VIPER22ASTR-E | STMicroelectronics | IC OFFLINE SWITCH FLYBACK 8SOIC | 92% | View |
| VIPER17LD | STMicroelectronics | IC OFFLINE SWITCH FLYBACK 16SO | 91% | View |
| VIPER17LDTR | STMicroelectronics | IC OFFLINE SWITCH FLYBACK 16SO | 91% | View |
Submit your RFQ for AP3984MTR-G1 and get a quote within 24 hours.
