IC OFFLINE SWITCH FLYBACK 7DIP

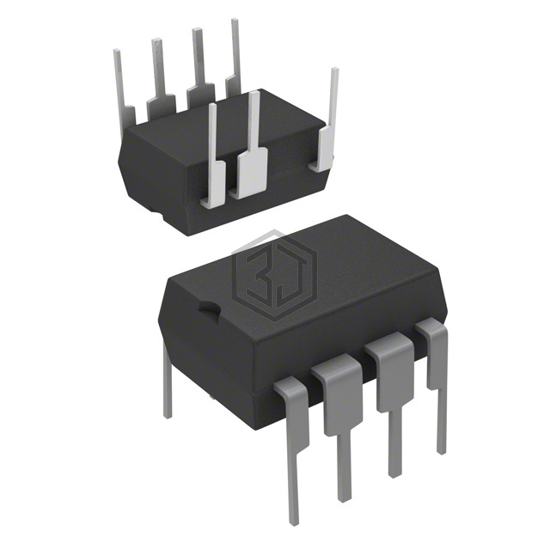

AP3983DP7-G1 is a PMIC - AC DC Converters, Offline Switchers manufactured by Diodes Incorporated. IC OFFLINE SWITCH FLYBACK 7DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C (TA), voltage - supply (vcc/vdd) 6.82V ~ 25V, package / case 8-DIP (0.300", 7.62mm), 7 Leads.
In Stock: 2,520
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 15.5 V |
| Voltage - Supply (Vcc/Vdd) | 6.82V ~ 25V |
| Duty Cycle | - |
| Frequency - Switching | 65kHz |
| Power (Watts) | 18 W |
| Fault Protection | Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 7-PDIP |
| Mounting Type | Through Hole |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NCP1014AP065G | onsemi | IC OFFLINE SWITCH FLYBACK 7DIP | 96% | View |
| NCP1013AP065G | onsemi | IC OFFLINE SWITCH FLYBACK 7DIP | 96% | View |
| NCP1075P065G | onsemi | IC OFFLINE SWITCH FLYBACK 7DIP | 92% | View |
| NCP1075BBP065G | onsemi | IC OFFLINE SWITCH FLYBACK 8DIP | 89% | View |
| NCP1077BAP065G | onsemi | IC OFFLINE SWITCH FLYBACK 8DIP | 83% | View |
| ICE3BR0680JZXKLA1 | Infineon Technologies | IC OFFLINE SWITCH FLYBACK 7DIP | 72% | View |
Submit your RFQ for AP3983DP7-G1 and get a quote within 24 hours.
