IC OFFLINE SWITCH MULT TOP 7DIP

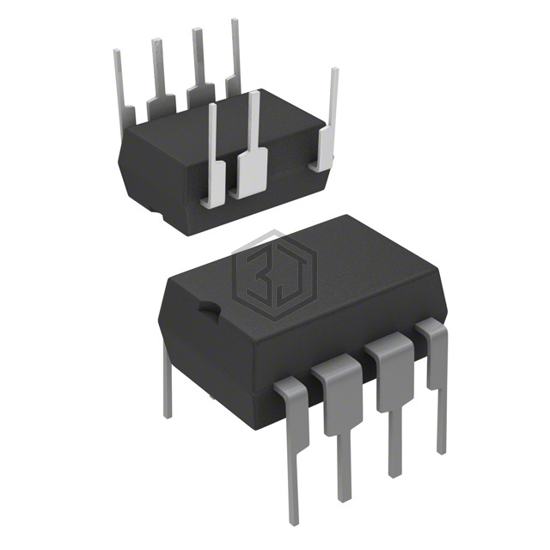

AP3971P7-G1 is a PMIC - AC DC Converters, Offline Switchers manufactured by Diodes Incorporated. IC OFFLINE SWITCH MULT TOP 7DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 5.3V ~ 22V, package / case 8-DIP (0.300", 7.62mm), 7 Leads.
In Stock: 9,930
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Isolation | Either |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | - |
| Topology | Buck, Flyback |
| Voltage - Start Up | 15 V |
| Voltage - Supply (Vcc/Vdd) | 5.3V ~ 22V |
| Duty Cycle | - |
| Frequency - Switching | 60kHz |
| Power (Watts) | 12 W |
| Fault Protection | Over Temperature, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 7-PDIP |
| Mounting Type | Through Hole |
AP3971P7-G1 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VIPER22ADIP-E | STMicroelectronics | IC OFFLINE SWITCH FLYBACK 8DIP | 95% | View |
| VIPER12ADIP-E | STMicroelectronics | IC OFFLINE SWITCH 8DIP | 92% | View |
| VIPER17LN | STMicroelectronics | IC OFFLINE SWITCH FLYBACK 8DIP | 90% | View |
| VIPER28LN | STMicroelectronics | IC OFFLINE SWITCH FLYBACK 7DIP | 88% | View |
| VIPER37LE | STMicroelectronics | IC OFFLINE SWITCH FLYBACK 10DIP | 83% | View |
| VIPER38LE | STMicroelectronics | IC OFFLINE SWITCH FLYBACK 10DIP | 83% | View |
Submit your RFQ for AP3971P7-G1 and get a quote within 24 hours.
