IC OFFLINE SWITCH FLYBACK 16HSOP

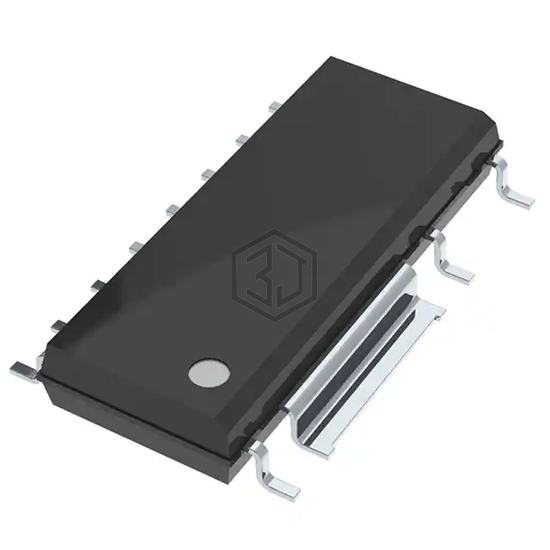

AP39303S16-13 is a PMIC - AC DC Converters, Offline Switchers manufactured by Diodes Incorporated. IC OFFLINE SWITCH FLYBACK 16HSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 10V ~ 28V, package / case 16-SOIC (0.154", 3.90mm Width), 12 Leads, Fused Leads.
In Stock: 7,894
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | 15.8 V |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 28V |
| Duty Cycle | - |
| Frequency - Switching | 24kHz ~ 120kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | 16-SOIC (0.154", 3.90mm Width), 12 Leads, Fused Leads |
| Supplier Device Package | 16-HSOP |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AP3304W6-7 | Diodes Incorporated | ACDC PWM SWITCHER SOT26 T&R 3K | 98% | View |
| TEA18362T/2J | NXP USA Inc. | IC OFFLINE SWITCH FLYBACK 8SO | 97% | View |
| NCP1342BKDCDAD1R2G | onsemi | HIGH FREQUENCY QUASI-RESONANT FL | 96% | View |
| BM2PBB3YF-E2 | Rohm Semiconductor | NON-ISOLATED TYPE PWM DC/DC CONV | 96% | View |
| FAN6080HMX | onsemi | PWM FOR 55W APPLICATION | 90% | View |
| INN3073M-H606-TL | Power Integrations | INNOSWITCH3-TN 12 W 85-265 VAC | 69% | View |
Submit your RFQ for AP39303S16-13 and get a quote within 24 hours.
