IC REG CTRLR BUCK 8SO

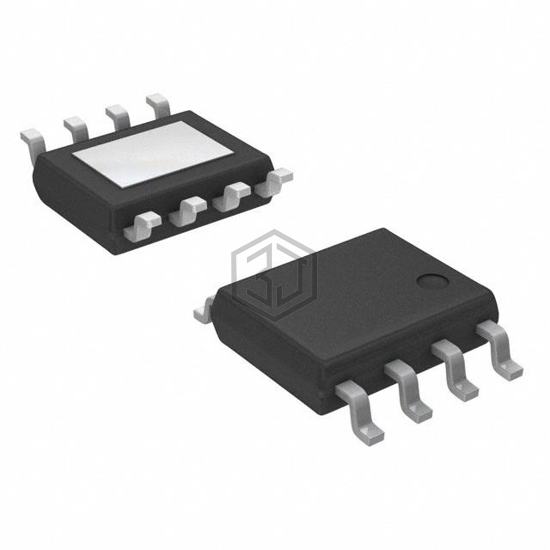

AP3585BMPTR-G1 is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Diodes Incorporated. IC REG CTRLR BUCK 8SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 13.2V, package / case 8-SOIC (0.154", 3.90mm Width) Exposed Pad.
In Stock: 1,561
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 13.2V |
| Frequency - Switching | 300kHz |
| Duty Cycle (Max) | 82% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Phase Control |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-SO-EP |
AP3585BMPTR-G1 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SP6125EK1-L/TR | MaxLinear, Inc. | IC REG CTRLR BUCK 6TSOT | 100% | View |
| MIC2182-5.0BM-TR | Microchip Technology | IC REG CTRLR BUCK 16SOIC | 100% | View |
| AP3586BMPTR-G1 | Diodes Incorporated | IC REG CTRLR BUCK 8SOIC | 99% | View |
| RT9214GS | Richtek USA Inc. | IC REG CTRLR BUCK 8SOP | 99% | View |
| XC9221B093ER-G | Torex Semiconductor Ltd | 16V INPUT STEP-DOWN DCDC CONTROL | 95% | View |
| XC9220B093ER-G | Torex Semiconductor Ltd | 16V INPUT STEP-DOWN DCDC CONTROL | 95% | View |
Submit your RFQ for AP3585BMPTR-G1 and get a quote within 24 hours.
