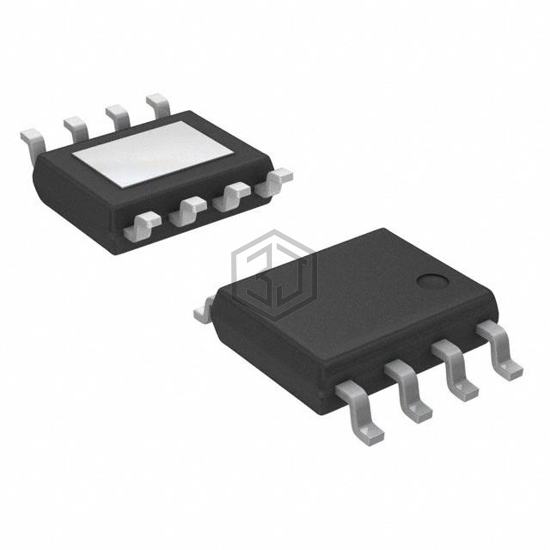

IC REG CTRLR BUCK 8SO
AP3585AMPTR-G1 is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Diodes Incorporated. IC REG CTRLR BUCK 8SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 13.2V, package / case 8-SOIC (0.154", 3.90mm Width) Exposed Pad.
In Stock: 4,985
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 13.2V |
| Frequency - Switching | 300kHz |
| Duty Cycle (Max) | 82% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Phase Control |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-SO-EP |
AP3585AMPTR-G1 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL6341IRZ-T | Renesas Electronics America Inc | IC REG CTRLR BUCK 10-TDFN | 100% | View |
| RT8129AGQW | Richtek USA Inc. | IC REG CTRLR BUCK 10WDFN | 100% | View |
| FX003 | Texas Instruments | FX003 | 95% | View |
| MAX1954AEUB+ | Analog Devices Inc./Maxim Integrated | IC REG CTRLR BUCK 10UMAX | 95% | View |
| S-8520F18MC-BNDT2U | ABLIC Inc. | IC REG CTRLR BUCK SOT23-5 | 93% | View |
| S-8520F35MC-BNUT2U | ABLIC Inc. | IC REG CTRLR BUCK SOT23-5 | 93% | View |
Submit your RFQ for AP3585AMPTR-G1 and get a quote within 24 hours.
