ACDCPWMSWITCHERSOT26T&R3K

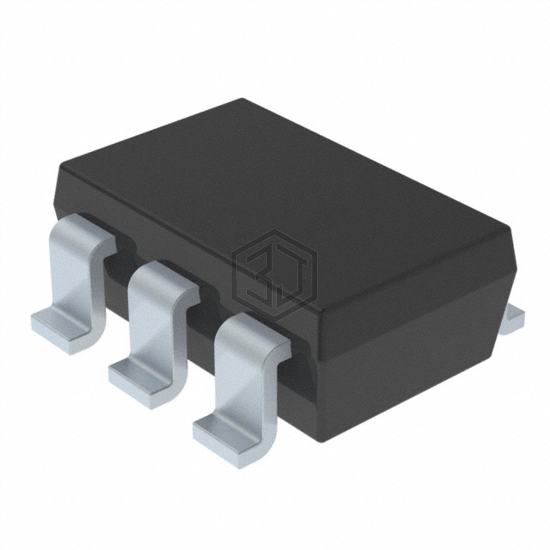

AP3304AW6-7 is a PMIC - AC DC Converters, Offline Switchers manufactured by Diodes Incorporated. ACDCPWMSWITCHERSOT26T&R3K. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 10V ~ 50V, package / case SOT-23-6.
In Stock: 23,990
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 15.8 V |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 50V |
| Duty Cycle | - |
| Frequency - Switching | 100kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-26 (Type A1) |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AP3125HBKTR-G1 | Diodes Incorporated | IC OFFLINE SWITCH FLYBACK SOT26 | 100% | View |
| TOP222G-TL | Power Integrations | IC OFFLINE SWITCH MULT TOP 8SMD | 100% | View |
| NCV1060BD100R2G | onsemi | IC OFFLINE SW MULT TOP 10SOIC | 97% | View |
| NCP1071STBT3G | onsemi | IC OFFLINE SWITCH FLYBACK SOT223 | 85% | View |
| NCP1077STBT3G | onsemi | IC OFFLINE SWITCH FLYBACK SOT223 | 84% | View |
| NCP1076STBT3G | onsemi | IC OFFLINE SWITCH FLYBACK SOT223 | 84% | View |
Submit your RFQ for AP3304AW6-7 and get a quote within 24 hours.
