ACDC SINGLE ENDED CONT SSOP-9

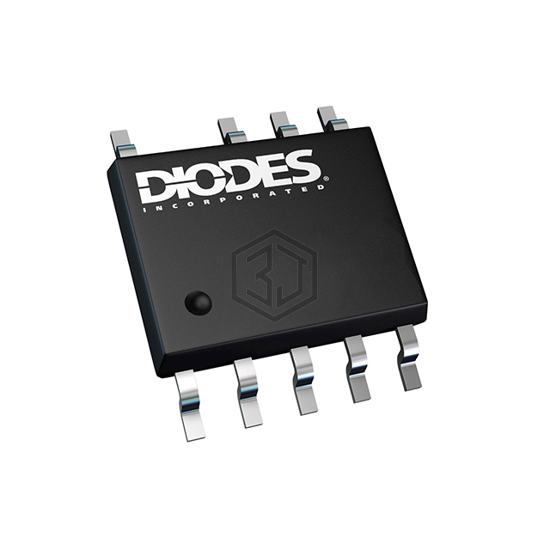

AP3118GSTR-G1 is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Diodes Incorporated. ACDC SINGLE ENDED CONT SSOP-9. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 10V ~ 28V, package / case 10-SOP (0.154", 3.90mm Width), 9 Leads.
In Stock: 6,713
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | PWM |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | - |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 28V |
| Frequency - Switching | 120kHz |
| Duty Cycle (Max) | 80% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-SOP (0.154", 3.90mm Width), 9 Leads |
| Supplier Device Package | 9-SSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R1225N252K-TR-FE | Nisshinbo Micro Devices Inc. | 18.5V INPUT PWM/VFM STEP-DOWN DC | 67% | View |
| R1225N502J-TR-FE | Nisshinbo Micro Devices Inc. | 18.5V INPUT PWM/VFM STEP-DOWN DC | 67% | View |
| R1225N602K-TR-FE | Nisshinbo Micro Devices Inc. | 18.5V INPUT PWM/VFM STEP-DOWN DC | 67% | View |
| R1225N502K-TR-FE | Nisshinbo Micro Devices Inc. | 18.5V INPUT PWM/VFM STEP-DOWN DC | 67% | View |
| R1225N182J-TR-FE | Nisshinbo Micro Devices Inc. | 18.5V INPUT PWM/VFM STEP-DOWN DC | 67% | View |
| R1225N332J-TR-FE | Nisshinbo Micro Devices Inc. | 18.5V INPUT PWM/VFM STEP-DOWN DC | 67% | View |
Submit your RFQ for AP3118GSTR-G1 and get a quote within 24 hours.
