IC PWM CONTROLLER SO-8

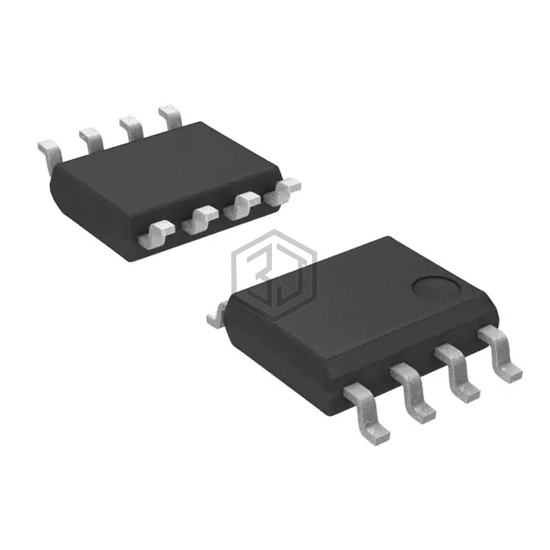

AP3101UMTR-E1 is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Diodes Incorporated. IC PWM CONTROLLER SO-8. Key specifications: operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 20V, package / case 8-SOIC (0.154", 3.90mm Width), output type PWM.
In Stock: 5,362
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | PWM |
| Function | - |
| Output Configuration | Positive |
| Topology | - |
| Number of Outputs | 1 |
| Output Phases | - |
| Voltage - Supply (Vcc/Vdd) | 20V |
| Frequency - Switching | 65kHz |
| Duty Cycle (Max) | 90% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Frequency Control |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | - |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
AP3101UMTR-E1 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AP3720MTR-G1 | Diodes Incorporated | IC PWM CONTROLLER | 93% | View |
Submit your RFQ for AP3101UMTR-E1 and get a quote within 24 hours.
