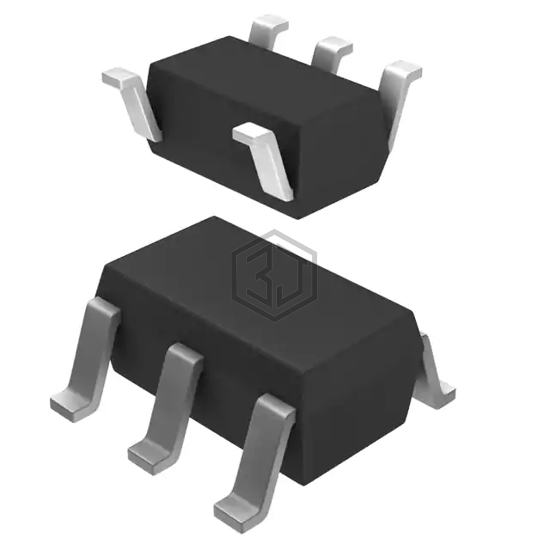

IC REG LINEAR 3.3V 150MA SOT23-5
AP2204K-3.3TRG1 is a PMIC - Voltage Regulators - Linear manufactured by Diodes Incorporated. IC REG LINEAR 3.3V 150MA SOT23-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case SC-74A, SOT-753, current - supply (max) 2.5 mA.
In Stock: 6,398
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 24V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.5V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 50 µA |
| Current - Supply (Max) | 2.5 mA |
| PSRR | 60dB (100Hz ~ 1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
AP2204K-3.3TRG1 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AP2204RB-5.0TRG1 | Diodes Incorporated | IC REG LINEAR 5V 150MA SOT89 | 87% | View |
| AP2204R-1.8TRG1 | Diodes Incorporated | IC REG LINEAR 1.8V 150MA SOT89-3 | 83% | View |
| LP2985ITP-2.8/NOPB | Texas Instruments | IC REG LINEAR 2.8V 150MA 5DSBGA | 79% | View |
| MIC5206-3.8YMM | Microchip Technology | IC REG LINEAR 3.8V 150MA 8MSOP | 75% | View |
| LM2936M-3.0/NOPB | Texas Instruments | IC REG LINEAR 3V 50MA 8SOIC | 59% | View |
| MIC5238-1.3YD5-TR | Microchip Technology | IC REG LIN 1.3V 150MA TSOT23-5 | 54% | View |
Submit your RFQ for AP2204K-3.3TRG1 and get a quote within 24 hours.
