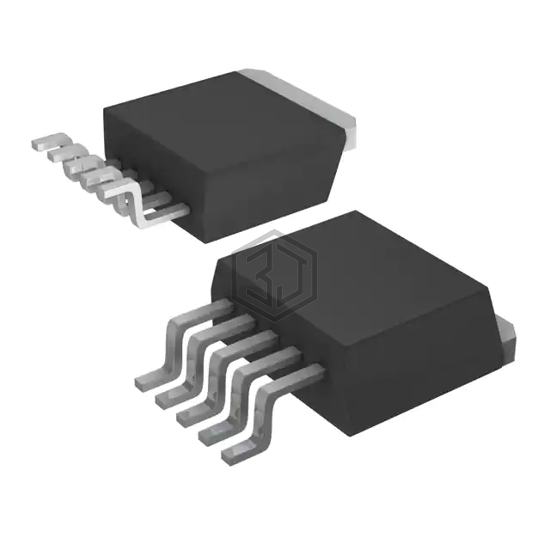

IC REG LINEAR 1.5V 4A TO263-5
AP1184K5-15L-U is a PMIC - Voltage Regulators - Linear manufactured by Diodes Incorporated. IC REG LINEAR 1.5V 4A TO263-5. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 125°C (TJ), package / case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA, current - supply (max) 70 mA.
In Stock: 2,277
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 1.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.85V @ 4A |
| Current - Output | 4A |
| Current - Quiescent (Iq) | 25 mA |
| Current - Supply (Max) | 70 mA |
| PSRR | 70dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | 0°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Supplier Device Package | TO-263-5 |
AP1184K5-15L-U is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AP1184K5-15L-13 | Diodes Incorporated | IC REG LINEAR 1.5V 4A TO263-5 | 100% | View |
| AP1184K5-18L-13 | Diodes Incorporated | IC REG LINEAR 1.8V 4A TO263-5 | 95% | View |
| AP1184K5-18L-U | Diodes Incorporated | IC REG LINEAR 1.8V 4A TO263-5 | 95% | View |
| MIC69301-1.2WU | Microchip Technology | IC REG LINEAR 1.2V 3A TO263-5 | 55% | View |
| MIC69301-1.2YME-TR | Microchip Technology | IC REG LINEAR 1.2V 3A 8SOIC | 55% | View |
| MIC69301-1.2WR | Microchip Technology | IC REG LINEAR 1.2V 3A SPAK-5 | 55% | View |
Submit your RFQ for AP1184K5-15L-U and get a quote within 24 hours.
