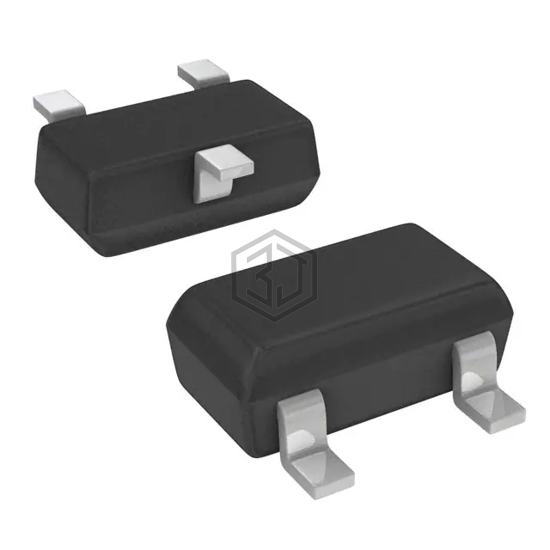

IC MOTOR DRVR 1.8V-5.75V SC59-3
AH292-WL-7 is a PMIC - Motor Drivers, Controllers manufactured by Diodes Incorporated. IC MOTOR DRVR 1.8V-5.75V SC59-3. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 150°C (TJ), voltage - supply 1.8V ~ 5.75V, package / case TO-236-3, SC-59, SOT-23-3.
In Stock: 5,191
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Low Side (2) |
| Interface | On/Off |
| Technology | Power MOSFET |
| Step Resolution | - |
| Applications | Fan Motor Driver |
| Current - Output | 400mA |
| Voltage - Supply | 1.8V ~ 5.75V |
| Voltage - Load | 1.8V ~ 5.75V |
| Operating Temperature | -20°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SC-59-3 |
AH292-WL-7 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AH291-WL-7 | Diodes Incorporated | IC MOTOR DRVR 1.8V-5.75V SC59-3 | 100% | View |
| AH291-YG-13 | Diodes Incorporated | IC MOTOR DRVR 1.8V-5.75V SOT89-5 | 100% | View |
| AH293-YG-13 | Diodes Incorporated | IC MOTOR DRVR 1.8V-5.75V SOT89-5 | 100% | View |
| DRV8601DRBT | Texas Instruments | IC MOTOR DRIVER 2.5V-5.5V 8SON | 88% | View |
| MPC17C724EPR2 | NXP USA Inc. | IC MTR DRVR BIPLR 2.7-5.5V 16QFN | 86% | View |
| MPC17C724EP | NXP USA Inc. | IC MTR DRVR BIPLR 2.7-5.5V 16QFN | 86% | View |
Submit your RFQ for AH292-WL-7 and get a quote within 24 hours.
