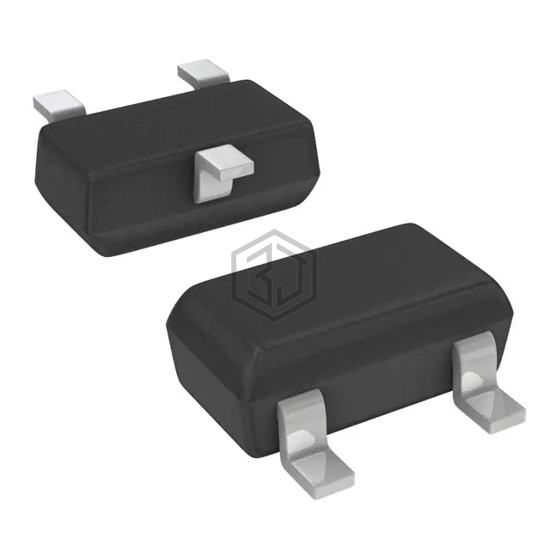

IC MOTOR DRIVER 3.8V-20V SC59-3
AH284-WL-7 is a PMIC - Motor Drivers, Controllers manufactured by Diodes Incorporated. IC MOTOR DRIVER 3.8V-20V SC59-3. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 3.8V ~ 20V, package / case TO-236-3, SC-59, SOT-23-3.
In Stock: 7,141
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Low Side (2) |
| Interface | On/Off |
| Technology | Power MOSFET |
| Step Resolution | - |
| Applications | Fan Motor Driver |
| Current - Output | 500mA |
| Voltage - Supply | 3.8V ~ 20V |
| Voltage - Load | 3.8V ~ 20V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SC-59-3 |
AH284-WL-7 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AH285-YL-13 | Diodes Incorporated | IC MOTOR DRIVER 3.8V-20V SOT89-5 | 100% | View |
| AH286-YG-13 | Diodes Incorporated | IC MOTOR DRIVER 3.8V-20V SOT89-5 | 100% | View |
| L99MM70XPTR | STMicroelectronics | IC MTR DRVR 5.5-24.5V 36POWERSSO | 91% | View |
| MCP8022T-5015H/SBX | Microchip Technology | 3-PHASE BRUSHLESS DC MOTOR GATE | 77% | View |
| MCP8022T-3315H/SBX | Microchip Technology | 3-PHASE BRUSHLESS DC MOTOR GATE | 77% | View |
| MCP8022T-3315E/SBX | Microchip Technology | 3-PHASE BRUSHLESS DC MOTOR GATE | 77% | View |
Submit your RFQ for AH284-WL-7 and get a quote within 24 hours.
