MAGNETIC SWITCH OMNIPOL SC59-3

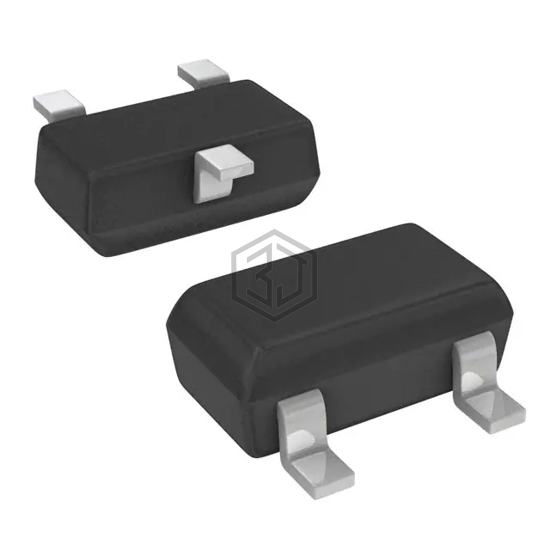

AH1809-W-7 is a Magnetic Sensors - Switches (Solid State) manufactured by Diodes Incorporated. MAGNETIC SWITCH OMNIPOL SC59-3. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 2.5V ~ 5.5V, package / case TO-236-3, SC-59, SOT-23-3.
In Stock: 3,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Omnipolar Switch |
| Technology | Hall Effect |
| Polarization | North Pole, South Pole |
| Sensing Range | ±18.5mT Trip, ±17mT Release |
| Test Condition | -40°C ~ 125°C |
| Voltage - Supply | 2.5V ~ 5.5V |
| Current - Supply (Max) | 6mA |
| Current - Output (Max) | 2.5mA |
| Output Type | Open Drain |
| Features | - |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-59-3 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
Submit your RFQ for AH1809-W-7 and get a quote within 24 hours.
