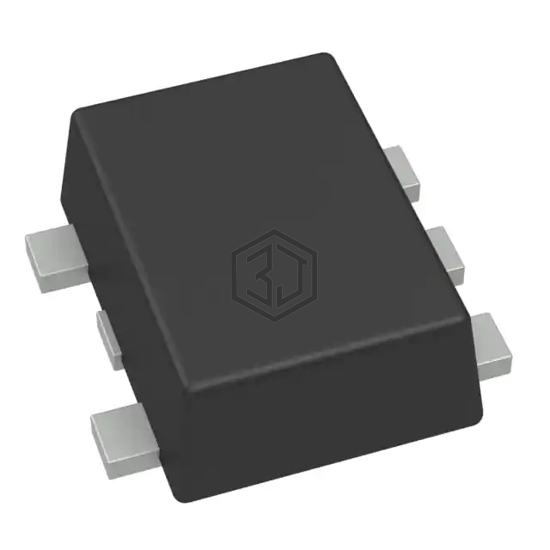

IC GATE XOR 1CH 2-INP SOT553
74LVC1G86Z-7 is a Logic - Gates and Inverters manufactured by Diodes Incorporated. IC GATE XOR 1CH 2-INP SOT553. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 1.65V ~ 5.5V, package / case SOT-553.
In Stock: 2,697
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | XOR (Exclusive OR) |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 200 µA |
| Current - Output High, Low | 32mA, 32mA |
| Logic Level - Low | 0.7V ~ 0.8V |
| Logic Level - High | 1.7V ~ 2V |
| Max Propagation Delay @ V, Max CL | 5.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-553 |
| Package / Case | SOT-553 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74LVC1G386DCKR | Texas Instruments | IC GATE XOR 1CH 3-INP SC70-6 | 83% | View |
| SN74LVC1G386DSFR | Texas Instruments | IC GATE XOR 1CH 3-INP 6SON | 83% | View |
| 74LVC2G86HK3-7 | Diodes Incorporated | IC GATE XOR 2CH 2-INP DFN1410-8 | 82% | View |
| 74LVC2G86DC,125 | Nexperia USA Inc. | IC GATE XOR 2CH 2-INP 8VSSOP | 79% | View |
| 74LVC2G86GT,115 | Nexperia USA Inc. | IC GATE XOR 2CH 2-INP 8XSON | 79% | View |
| NLV27WZ86USG | onsemi | IC GATE XOR 2CH 2-INP US8 | 77% | View |
Submit your RFQ for 74LVC1G86Z-7 and get a quote within 24 hours.
