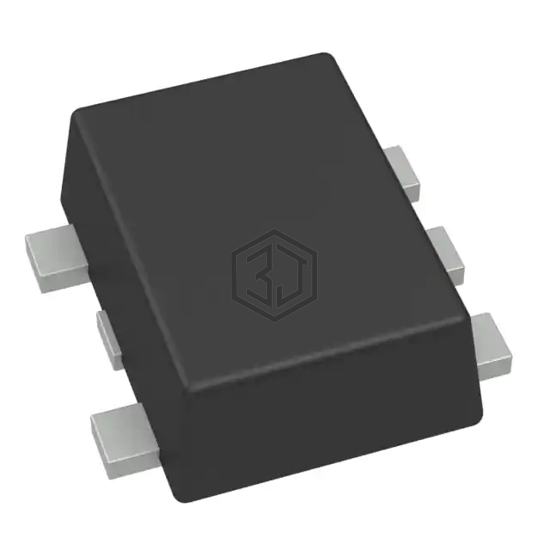

IC INVERT SCHMITT 1CH 1IN SOT553
74LVC1G14Z-7 is a Logic - Gates and Inverters manufactured by Diodes Incorporated. IC INVERT SCHMITT 1CH 1IN SOT553. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case SOT-553.
In Stock: 9,405
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 200 µA |
| Current - Output High, Low | 32mA, 32mA |
| Logic Level - Low | 0.75V ~ 2.35V |
| Logic Level - High | 1.2V ~ 3.33V |
| Max Propagation Delay @ V, Max CL | 6.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-553 |
| Package / Case | SOT-553 |
