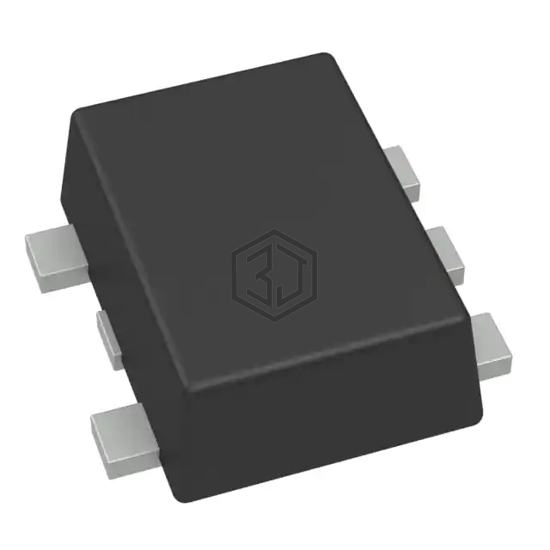

IC GATE NOR 1CH 2-INP SOT553
74LVC1G02Z-7 is a Logic - Gates and Inverters manufactured by Diodes Incorporated. IC GATE NOR 1CH 2-INP SOT553. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case SOT-553.
In Stock: 3,655
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | NOR Gate |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 200 µA |
| Current - Output High, Low | 32mA, 32mA |
| Logic Level - Low | 0.7V ~ 0.8V |
| Logic Level - High | 1.7V ~ 2V |
| Max Propagation Delay @ V, Max CL | 1.7ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-553 |
| Package / Case | SOT-553 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74LVC1G02W5-7 | Diodes Incorporated | IC GATE NOR 1CH 2-INP SOT25 | 87% | View |
| SN74LVC1G02DRYR | Texas Instruments | IC GATE NOR 1CH 2-INP 6SON | 75% | View |
| SN74LVC1G02DBVTG4 | Texas Instruments | IC GATE NOR 1CH 2-INP SOT23-5 | 75% | View |
| 74LVC1G02QW5-7 | Diodes Incorporated | IC GATE NOR 1CH 2-IN SOT25 TR/3K | 72% | View |
| SN74LVC2G02DCUT | Texas Instruments | IC GATE NOR 2CH 2-INP 8VSSOP | 71% | View |
| NLV17SZ02DFT2G | onsemi | IC GATE NOR 1CH 2-INP SC88A | 69% | View |
Submit your RFQ for 74LVC1G02Z-7 and get a quote within 24 hours.
