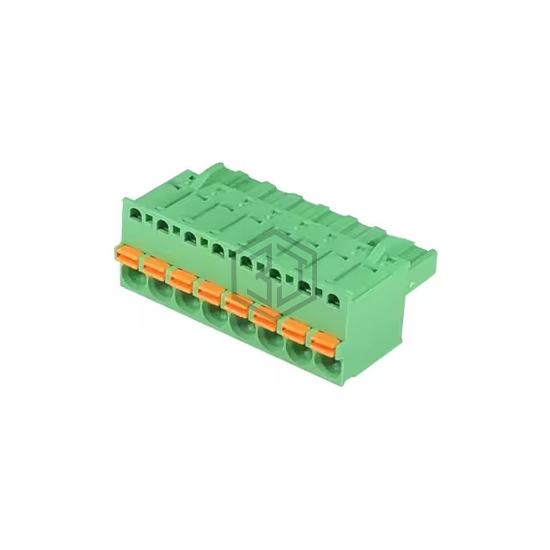

TERM BLK 8POS 5.08MM PID PLG
2ESDS-08P is a Terminal Blocks - Headers, Plugs and Sockets manufactured by Dinkle Corporation, USA. TERM BLK 8POS 5.08MM PID PLG. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 120°C, color Green, termination style Screwless - Leg Spring, Push-In Spring.
In Stock: 840
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 8 |
| Positions Per Level | 8 |
| Number of Levels | 1 |
| Pitch | 0.200" (5.08mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screwless - Leg Spring, Push-In Spring |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 12A |
| Voltage - IEC | 600 V |
| Current - UL | 10 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | 12-26 AWG |
| Wire Gauge or Range - mm² | 0.2-2.5mm² |
| Color | Green |
| Operating Temperature | -40°C ~ 120°C |
| Contact Mating Finish | Tin |
| Features | - |
