AC/DC CONVERTER 5V +/-12V 146W

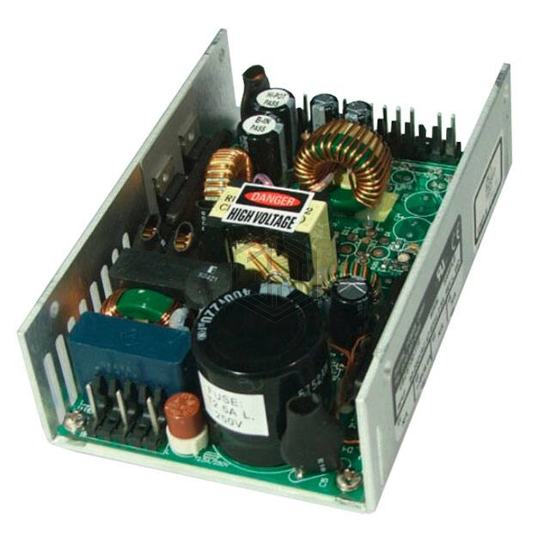

US100-301 is a AC DC Converters manufactured by Digital Power Corporation. AC/DC CONVERTER 5V +/-12V 146W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 50°C, voltage - input 90 ~ 250 VAC, size / dimension 5.00" L x 3.30" W x 1.50" H (127.0mm x 83.8mm x 38.1mm).
In Stock: 500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 3 |
| Voltage - Input | 90 ~ 250 VAC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | -12V |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 10 A |
| Current - Output 2 | 6 A |
| Current - Output 3 | 2 A |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 146W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | - |
| Efficiency | 75% |
| Operating Temperature | 0°C ~ 50°C |
| Features | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.00" L x 3.30" W x 1.50" H (127.0mm x 83.8mm x 38.1mm) |
| Approval Agency | cCSAus, CE |
| Standard Number | - |
Submit your RFQ for US100-301 and get a quote within 24 hours.
