AC/DC CONVERTER 5V 100W

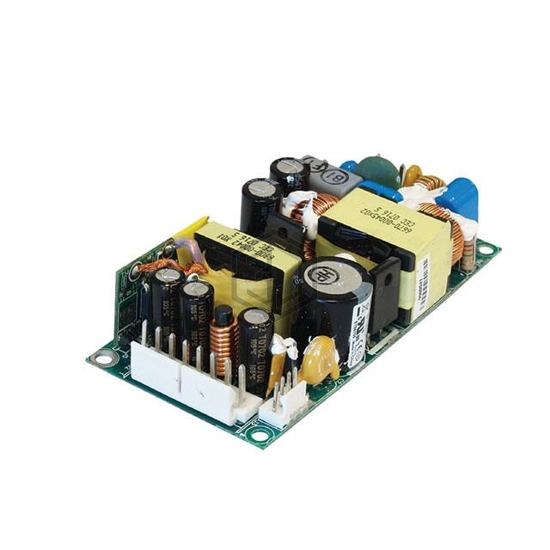

HD160-105 is a AC DC Converters manufactured by Digital Power Corporation. AC/DC CONVERTER 5V 100W. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, 170 ~ 370 VDC, size / dimension 4.00" L x 2.00" W x 1.06" H (101.6mm x 50.8mm x 26.9mm).
In Stock: 500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC, 170 ~ 370 VDC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 20 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 100W |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | - |
| Efficiency | 90% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Adjustable Output, PFC, Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.00" L x 2.00" W x 1.06" H (101.6mm x 50.8mm x 26.9mm) |
| Approval Agency | CE, CSA, NEMKO |
| Standard Number | 60601-1; 60950-1 |
Submit your RFQ for HD160-105 and get a quote within 24 hours.
