DC/DC CNVRTR 5V 3.3V +/-12V 348W

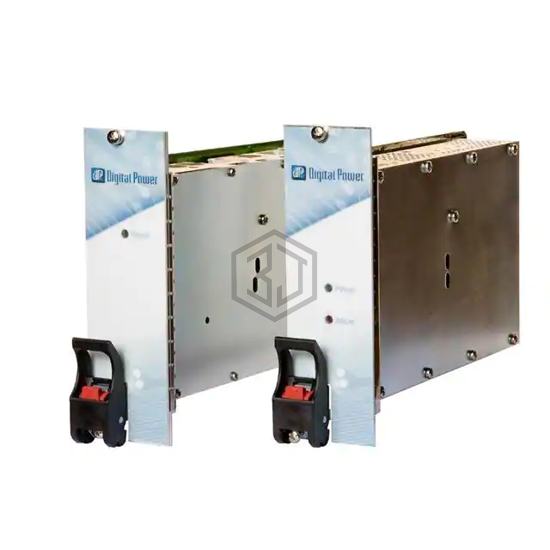

CPCI-DC-3U-300/24R is a DC DC Converters manufactured by Digital Power Corporation. DC/DC CNVRTR 5V 3.3V +/-12V 348W. Key specifications: mounting type Compact PCI®, operating temperature -5°C ~ 70°C (With Derating), current - output (max) 30A, 40A, 5A, 500mA, size / dimension 6.67" L x 3.94" W x 1.60" H (169.4mm x 100.0mm x 40.6mm).
In Stock: 15
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 20V |
| Voltage - Input (Max) | 36V |
| Number of Outputs | 4 |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 3.3V |
| Voltage - Output 3 | 12V |
| Voltage - Output 4 | -12V |
| Current - Output (Max) | 30A, 40A, 5A, 500mA |
| Power (Watts) | 348W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Efficiency | - |
| Operating Temperature | -5°C ~ 70°C (With Derating) |
| Mounting Type | Compact PCI® |
| Size / Dimension | 6.67" L x 3.94" W x 1.60" H (169.4mm x 100.0mm x 40.6mm) |
| Approval Agency | CE, cURus |
| Standard Number | 60950-1 |
Submit your RFQ for CPCI-DC-3U-300/24R and get a quote within 24 hours.
