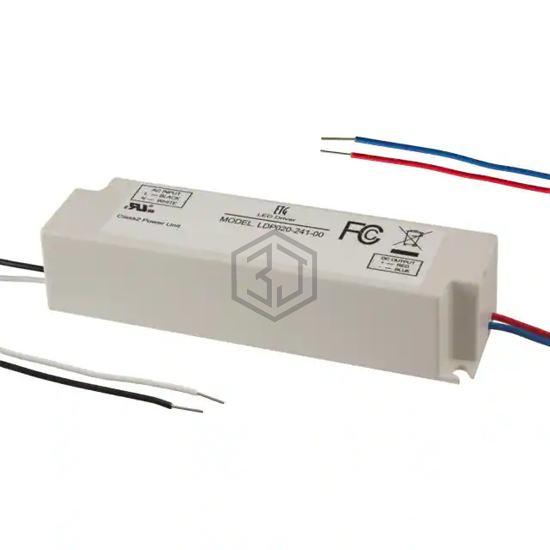

LED DVR CC/CV AC/DC 12-24V .7A
LDP020-241-00 is a LED Drivers manufactured by Digi-Key/Cree. LED DVR CC/CV AC/DC 12-24V .7A. Key specifications: operating temperature -20°C ~ 60°C, voltage - output 12 ~ 24V, current - output (max) 700mA, size / dimension 5.39" L x 1.50" W x 1.18" H (137.0mm x 38.0mm x 30.0mm).
In Stock: 11
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Type | Constant Current, Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 264VAC |
| Voltage - Output | 12 ~ 24V |
| Current - Output (Max) | 700mA |
| Power (Watts) | 20 W |
| Voltage - Isolation | - |
| Dimming | - |
| Features | OCP, OVP, SCP |
| Ratings | IP64 |
| Operating Temperature | -20°C ~ 60°C |
| Efficiency | 80% |
| Termination Style | Wire Leads |
| Size / Dimension | 5.39" L x 1.50" W x 1.18" H (137.0mm x 38.0mm x 30.0mm) |
| Approval Agency | cULus, EN |
| Standard Number | - |
