A09-Y8NF

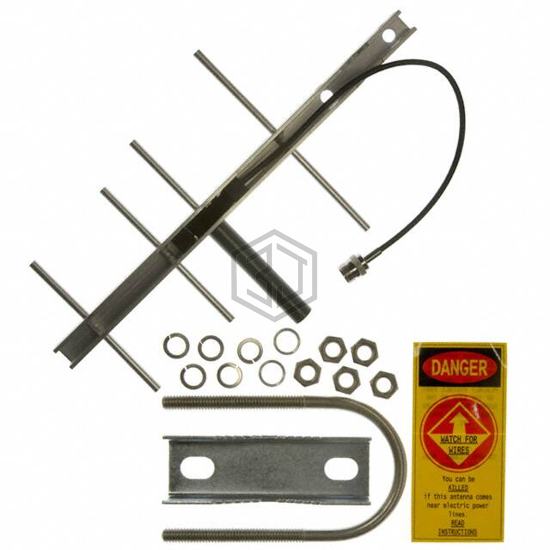

RF ANT 938MHZ YAGI N TYP BRKT MT
A09-Y8NF is a RF Antennas manufactured by Digi. RF ANT 938MHZ YAGI N TYP BRKT MT. Key specifications: mounting type Bracket Mount, termination N Type Female, frequency range 896MHz ~ 980MHz.
In Stock: 8
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | - |
| Frequency Group | UHF (300MHz ~ 1GHz) |
| Frequency (Center/Band) | 938MHz |
| Frequency Range | 896MHz ~ 980MHz |
| Antenna Type | Yagi, 4-Element |
| Number of Bands | 1 |
| VSWR | 1.5 |
| Return Loss | - |
| Gain | 8.15dBi |
| Power - Max | - |
| Features | Cable - 203mm |
| Termination | N Type Female |
| Ingress Protection | - |
| Mounting Type | Bracket Mount |
| Height (Max) | 12.000" (304.80mm) |
| Applications | - |
Frequently Asked Questions
A09-Y8NF is a RF Antennas manufactured by Digi. RF ANT 938MHZ YAGI N TYP BRKT MT
The mounting type of A09-Y8NF is Bracket Mount.
The termination type of A09-Y8NF is N Type Female.
The frequency of A09-Y8NF is 896MHz ~ 980MHz.
