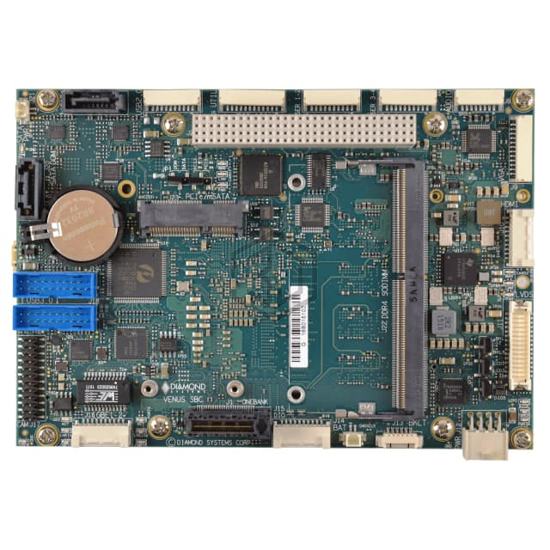

RUGGED SBC I7-7660U 4GB PCIE/104
VNS776KL-4GD is a Single Board Computers (SBCs), Computer On Module (COM) manufactured by Diamond Systems. RUGGED SBC I7-7660U 4GB PCIE/104. Key specifications: operating temperature -40°C ~ 85°C, size / dimension 5.75" x 4" (146.05mm x 101.6mm), power (watts) 14W.
In Stock: 8,851
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | Intel Core i7-7660U |
| Speed | 2.8GHz |
| Number of Cores | 1 |
| Power (Watts) | 14W |
| Cooling Type | - |
| Size / Dimension | 5.75" x 4" (146.05mm x 101.6mm) |
| Form Factor | 3.5" |
| Expansion Site/Bus | PCIe/104 |
| RAM Capacity/Installed | 20GB/4GB |
| Storage Interface | mSATA, SATA3 (3) |
| Video Outputs | HDMI, LCD, LVDS, VGA |
| Ethernet | 10/100/1000Mbps (2) |
| USB | USB 2.0 (6), USB 3.0 (4) |
| RS-232 (422, 485) | 4 |
| Digital I/O Lines | 16 |
| Analog Input:Output | - |
| Watchdog Timer | No |
| Operating Temperature | -40°C ~ 85°C |
Submit your RFQ for VNS776KL-4GD and get a quote within 24 hours.
