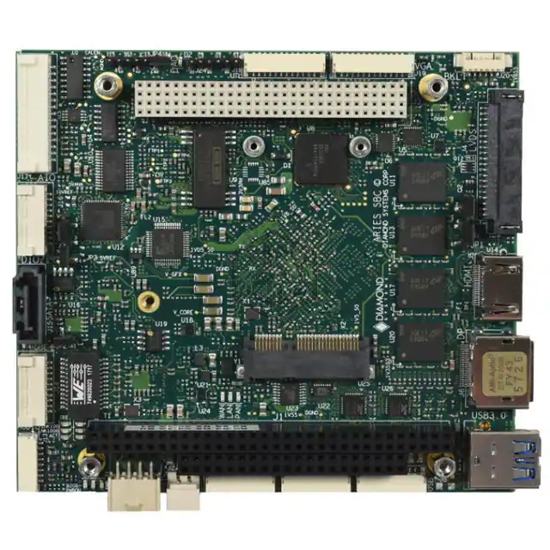

ARIES BAY TRAL PC/104-PLUS SBC W
ARS3845-4GN is a Single Board Computers (SBCs), Computer On Module (COM) manufactured by Diamond Systems. ARIES BAY TRAL PC/104-PLUS SBC W. Key specifications: operating temperature -40°C ~ 85°C, size / dimension 4.49" x 4.02" (114mm x 102mm), power (watts) 8.5W.
In Stock: 7,806
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | Intel® Atom™ Processor E3845 |
| Speed | 1.91GHz |
| Number of Cores | 4 |
| Power (Watts) | 8.5W |
| Cooling Type | Heat Sink |
| Size / Dimension | 4.49" x 4.02" (114mm x 102mm) |
| Form Factor | PC/104-Plus |
| Expansion Site/Bus | Mini-PCIeI, PC/104-Plus |
| RAM Capacity/Installed | -/4GB |
| Storage Interface | SATA, mSATA, Flash |
| Video Outputs | DP, HDMI, LCD, LVDS, VGA |
| Ethernet | 10/100/1000Mbps (2) |
| USB | USB 2.0 (3), USB 3.0 (1) |
| RS-232 (422, 485) | 4 |
| Digital I/O Lines | 22 |
| Analog Input:Output | - |
| Watchdog Timer | Yes |
| Operating Temperature | -40°C ~ 85°C |
Submit your RFQ for ARS3845-4GN and get a quote within 24 hours.
