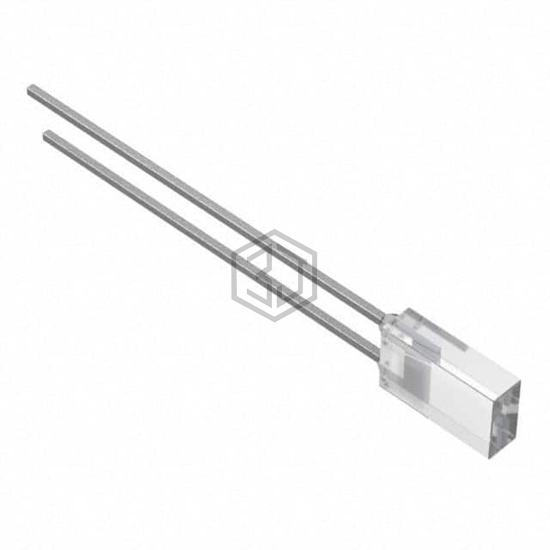

LED GRN/RED DIFF RECT 2X4MM T/H
5219743F is a LED Indication - Discrete manufactured by Dialight. LED GRN/RED DIFF RECT 2X4MM T/H. Key specifications: mounting type Through Hole, voltage - forward (vf) (typ) 2.1V Green, 2V Red, package / case Radial, color Green, Red.
In Stock: 2,437
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red |
| Configuration | Bidirectional |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 5.6mcd Green, 5.6mcd Red |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 3.99mm x 2.03mm |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 2V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 140° |
| Mounting Type | Through Hole |
| Wavelength - Dominant | 569nm Green, 621nm Red |
| Wavelength - Peak | 565nm Green, 630nm Red |
| Features | - |
| Package / Case | Radial |
| Supplier Device Package | Rectangular 2mmx4mm |
| Size / Dimension | - |
| Height (Max) | 7.01mm |
Submit your RFQ for 5219743F and get a quote within 24 hours.
