5MM RGB WC LED W 4 LEADS,COMMON

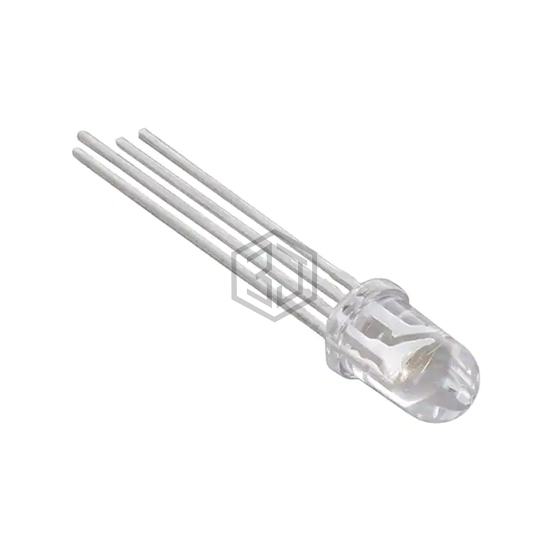

5218559F is a LED Indication - Discrete manufactured by Dialight. 5MM RGB WC LED W 4 LEADS,COMMON. Key specifications: mounting type Through Hole, voltage - forward (vf) (typ) 2.2V Red, 3.2V Green, 3.3V Blue, package / case Radial - 4 Leads, color Red, Green, Blue (RGB).
In Stock: 1,336
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | - |
| Lens Transparency | Clear |
| Millicandela Rating | 2500mcd Red, 1900mcd Green, 1450mcd Blue |
| Lens Style | Round with Domed Top |
| Lens Size | 5.00mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.2V Red, 3.2V Green, 3.3V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 50° |
| Mounting Type | Through Hole |
| Wavelength - Dominant | 625nm Red, 525nm Green, 470nm Blue |
| Wavelength - Peak | 634nm Red, 525nm Green, 470nm Blue |
| Features | - |
| Package / Case | Radial - 4 Leads |
| Supplier Device Package | 5mm |
| Size / Dimension | 5.00mm Dia |
| Height (Max) | 8.60mm |
