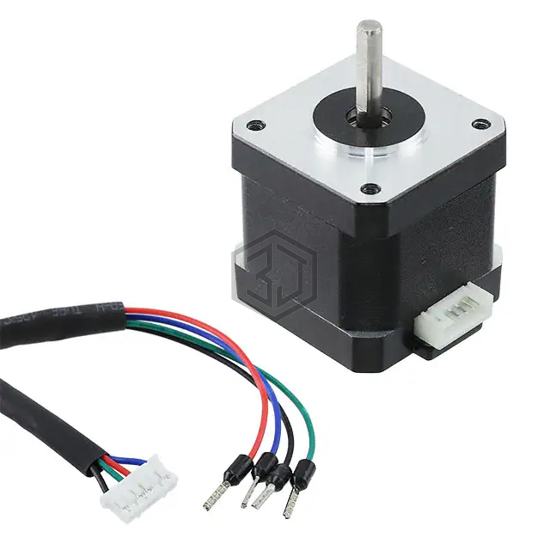

HYBRID STEPPER MOTOR FOR 3D PRIN
FIT0278 is a Stepper Motors manufactured by DFRobot. HYBRID STEPPER MOTOR FOR 3D PRIN. Key specifications: operating temperature -20°C ~ 50°C, voltage - rated 3.4VDC, current rating (amps) 1.7 A, size / dimension Square - 1.654" x 1.654" (42.00mm x 42.00mm).
In Stock: 37
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 3.4VDC |
| Current Rating (Amps) | 1.7 A |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | ±5% |
| Torque - Holding (oz-in / mNm) | 48.6 / 343.19 |
| Size / Dimension | Square - 1.654" x 1.654" (42.00mm x 42.00mm) |
| NEMA Frame Size | 17 |
| Diameter - Shaft | 0.197" (5.00mm) |
| Length - Shaft and Bearing | 0.945" (24.00mm) |
| Mounting Hole Spacing | 1.220" (31.00mm) |
| Termination Style | Connector |
| Operating Temperature | -20°C ~ 50°C |
| Coil Resistance | 2 Ohms |
| Features | Round Shaft |
