DC DC CONVERTER +/-15V 3W

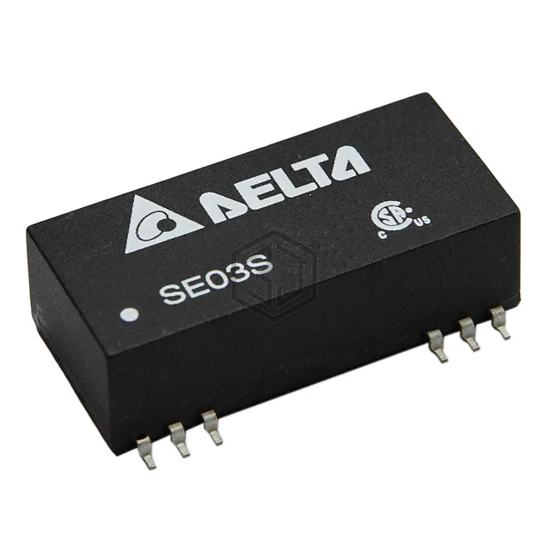

SE03D1215A is a DC DC Converters manufactured by Delta Electronics. DC DC CONVERTER +/-15V 3W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 71°C, package / case 24-SMD Module, 12 Leads, current - output (max) 100mA, 100mA.
In Stock: 193
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 18V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 100mA, 100mA |
| Power (Watts) | 3 W |
| Voltage - Isolation | 1.5 kV |
| Applications | Medical |
| Features | SCP, UVLO |
| Operating Temperature | -40°C ~ 71°C |
| Efficiency | 81% |
| Mounting Type | Surface Mount |
| Package / Case | 24-SMD Module, 12 Leads |
| Size / Dimension | 1.27" L x 0.74" W x 0.40" H (32.3mm x 18.8mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for SE03D1215A and get a quote within 24 hours.
