DC DC CONVERTER +/-15V 2W

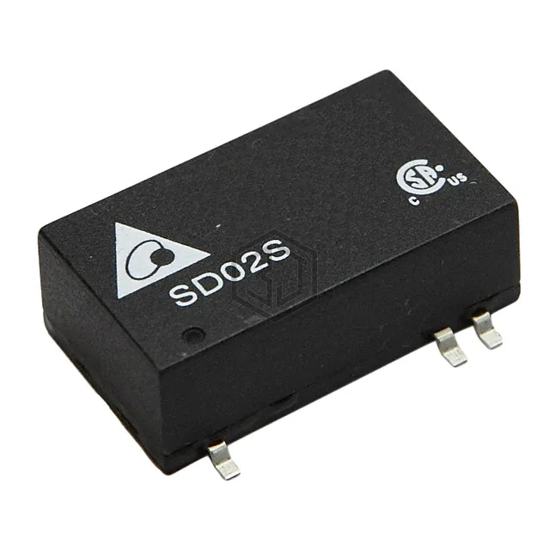

SD02D2415A is a DC DC Converters manufactured by Delta Electronics. DC DC CONVERTER +/-15V 2W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 16-SMD Module, current - output (max) 67mA, 67mA.
In Stock: 95
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 67mA, 67mA |
| Power (Watts) | 2 W |
| Voltage - Isolation | 1.5 kV |
| Applications | Medical |
| Features | SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 80% |
| Mounting Type | Surface Mount |
| Package / Case | 16-SMD Module |
| Size / Dimension | 0.94" L x 0.71" W x 0.31" H (23.9mm x 18.1mm x 8.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for SD02D2415A and get a quote within 24 hours.
