DC DC CONVERTER +/-15V 1W

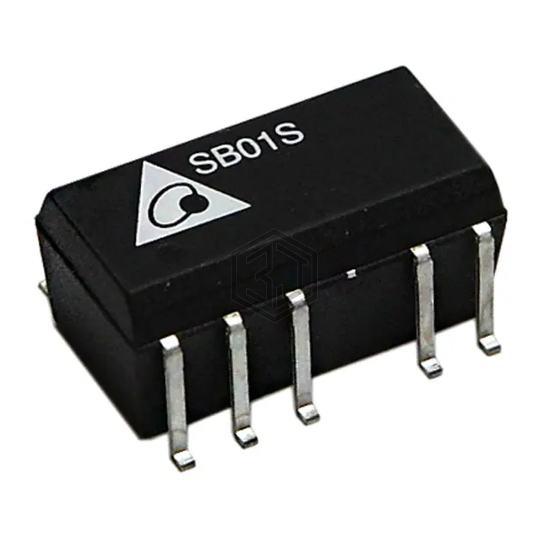

SB01D2415A is a DC DC Converters manufactured by Delta Electronics. DC DC CONVERTER +/-15V 1W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 12-SMD Module, 10 Leads, current - output (max) 34mA, 34mA.
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 21.6V |
| Voltage - Input (Max) | 26.4V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 34mA, 34mA |
| Power (Watts) | 1 W |
| Voltage - Isolation | 3 kV |
| Applications | Medical |
| Features | SCP |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 80% |
| Mounting Type | Surface Mount |
| Package / Case | 12-SMD Module, 10 Leads |
| Size / Dimension | 0.60" L x 0.42" W x 0.28" H (15.2mm x 10.7mm x 7.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for SB01D2415A and get a quote within 24 hours.
