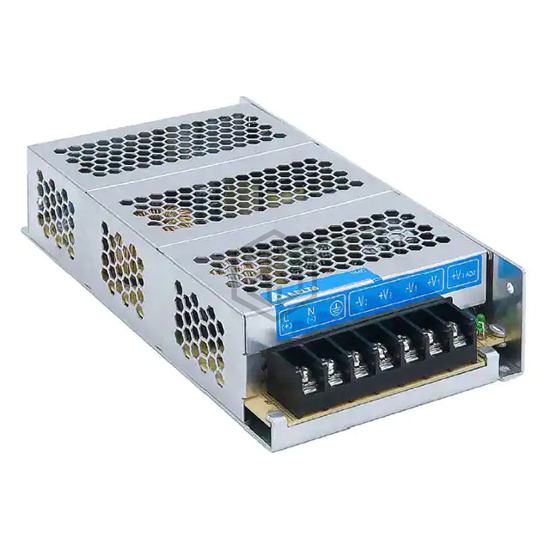

AC/DC CONVERTER 24V 5V 100W
PMC-DSPV100W1A is a AC DC Converters manufactured by Delta Electronics. AC/DC CONVERTER 24V 5V 100W. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 70°C (With Derating), voltage - input 85 ~ 264 VAC, size / dimension 7.01" L x 3.82" W x 1.50" H (178.0mm x 97.0mm x 38.0mm).
In Stock: 41
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 2 |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | 5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 2.7 A |
| Current - Output 2 | 7 A |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 100W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 86% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Adjustable Output, DC Input Capable, Load Sharing, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 7.01" L x 3.82" W x 1.50" H (178.0mm x 97.0mm x 38.0mm) |
| Approval Agency | CB Scheme, CE, EAC, EN, SIQ, UL |
| Standard Number | 50581; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3 |
Submit your RFQ for PMC-DSPV100W1A and get a quote within 24 hours.
