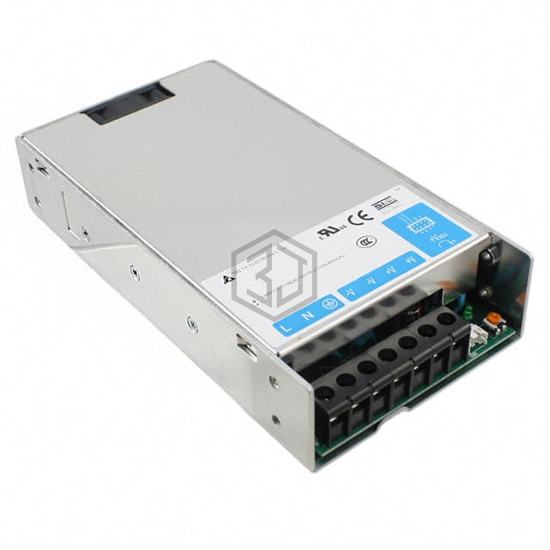

AC/DC CONVERTER 24V 12V 300W
PMC-24V300W1BA is a AC DC Converters manufactured by Delta Electronics. AC/DC CONVERTER 24V 12V 300W. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 70°C (With Derating), voltage - input 85 ~ 264 VAC, size / dimension 7.83" L x 4.13" W x 1.61" H (199.0mm x 105.0mm x 41.0mm).
In Stock: 11
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 2 |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 12.5 A |
| Current - Output 2 | 500 mA |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 300W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 87% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Adjustable Output, DC Input Capable, PFC, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 7.83" L x 4.13" W x 1.61" H (199.0mm x 105.0mm x 41.0mm) |
| Approval Agency | CB Scheme, CE, EAC, EN, SIQ, UL |
| Standard Number | 50581; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3 |
